MC II series safety light curtain

characteristic：◆Specialdesign,multiplefixingmethods,convenientandfastinstallation；◆Compactappearance,savingmoreinstallationspace；◆Comprehensiveselfinspectionfunction；◆Strongresistancetoelectromagnetic...

product

characteristic：

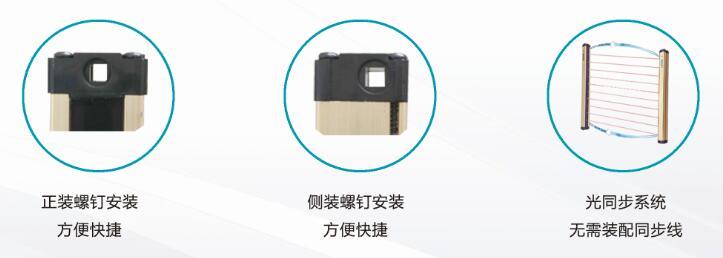

◆Special design, multiple fixing methods, convenient and fast installation；
◆Compact appearance, saving more installation space；
◆Comprehensive self inspection function；
◆Strong resistance to electromagnetic and optical interference；
◆Strong vibration resistance, superior waterproof and dustproof performance；
◆LED indicates working and fault status；
◆Optical synchronization technology, simple wiring, saves installation time.

Technical parameters:

protective length	0-3500mm
protection height	Optical axis spacing× (Number of beams -1)
Beam pitch	10mm,20mm,40mm
check the accuracy	19mm,29mm,49m
Working power supply	DC12V～24V
Working current	<200mA
LOAD	<200mA
response time	<20ms
security level	PL c (EN ISO 13849)
protection grade	IP65
operation temperature	–10°C ～ +55°C
ambient humidity	20°C, RH ≤85%
Anti light interference	10000Lux (incident angle≥5°)
Anti vibration	Frequency: 10-55Hz, amplitude: 0.35mm
Impact resistance	10g, 16ms, X, Y, Z axes, 1000 times per axis

Model Selection Table：

Beam pitch?10mm				Beam pitch?20mm				Beam pitch40mm
specifications	light beam	H	L	specifications	light beam	H	?L	specifications	light beam	H	L
MCⅡ1610	16	150	197	MCⅡ0820	8	140	182	MCⅡ0440	4	120	182
MCⅡ2410	24	230	277	MCⅡ1220	12	220	262	MCⅡ0640	6	200	262
MCⅡ3210	32	310	357	MCⅡ1620	16	300	342	MCⅡ0840	8	280	342
MCⅡ4010	40	390	437	MCⅡ2020	20	380	422	MCⅡ1040	10	360	422
MCⅡ4810	48	470	517	MCⅡ2420	24	460	502	MCⅡ1240	12	440	502
MCⅡ5610	56	550	597	MCⅡ2820	28	540	582	MCⅡ1440	14	520	582
MCⅡ6410	64	630	677	MCⅡ3220	32	620	662	MCⅡ1640	16	600	662
MCⅡ7210	72	710	757	MCⅡ3620	36	700	742	MCⅡ1840	18	680	742
MCⅡ8010	80	790	837	MCⅡ4020	40	780	822	MCⅡ2040	20	760	822
MCⅡ8810	88	870	917	MCⅡ4420	44	860	902	MCⅡ2240	22	840	902
MCⅡ9610	96	950	997	MCⅡ4820	48	940	982	MCⅡ2440	24	920	982
MCⅡ10410	104	1030	1077	MCⅡ5220	52	1020	1062	MCⅡ2640	26	1000	1062
MCⅡ11210	112	1110	1157	MCⅡ5620	56	1100	1142	MCⅡ2840	28	1080	1142
MCⅡ12010	120	1190	1237	MCⅡ6020	60	1180	1222	MCⅡ3040	30	1160	1222
MCⅡ12810	128	1270	1317	MCⅡ6420	64	1260	1302	MCⅡ3240	32	1240	1302
MCⅡ13610	136	1350	1397	MCⅡ6820	68	1340	1382	MCⅡ3440	34	1320	1382
MCⅡ14410	144	1430	1477	MCⅡ7220	72	1420	1462	MCⅡ3640	36	1400	1462
MCⅡ15210	152	1510	1557	MCⅡ7620	76	1500	1542	MCⅡ3840	38	1480	1542
MCⅡ16010	160	1590	1637	MCⅡ8020	80	1580	1622	MCⅡ4040	40	1560	1622
MCⅡ16810	168	1670	1717	MCⅡ8420	84	1660	1702	MCⅡ4240	42	1640	1702
?	?	?	?	MCⅡ8820	88	1740	1782	MCⅡ4440	44	1720	1782
?	?	?	?	MCⅡ9220	92	1820	1862	MCⅡ4640	46	1800	1862
?	?	?	?	MCⅡ9620	96	1900	1942	MCⅡ4840	48	1880	1942

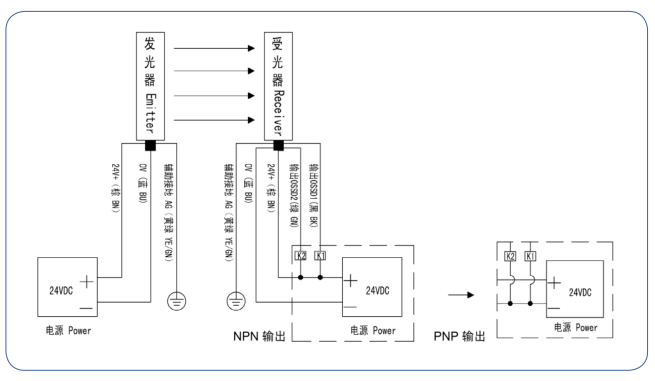

Wiring diagram：

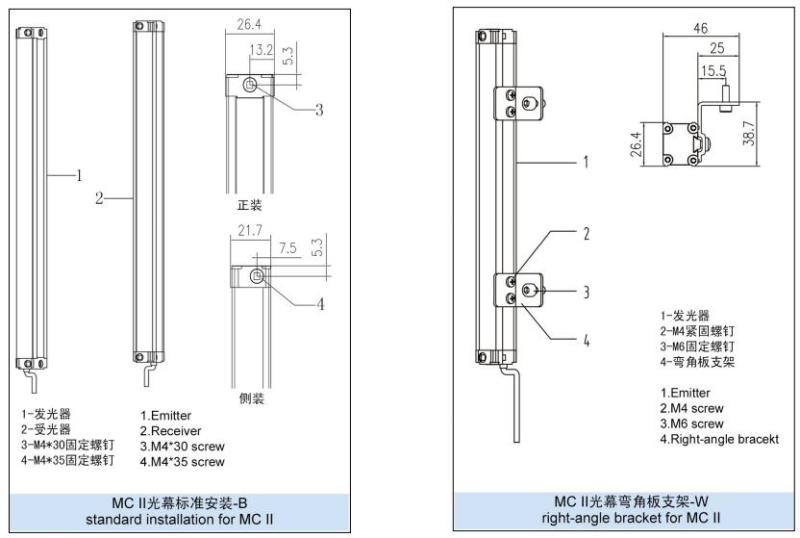

Bracket：
